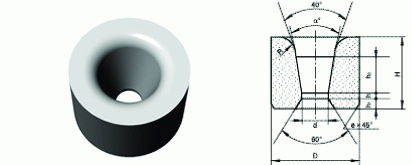

Carboneto de Tungstênio Dies Tipo 11
| Tipo | Dimens?es | |||||||
| D | H | d | h | h1 | h2 | R | αo | |
| 11- | 8.00 | 6.00 | 0.40~1.00 | 0.30~0.60 | 1.00 | 1.20~2.00 | 1.50 | 10 |
| 13.00 | 10.00 | 0.40~2.30 | 0.30~1.40 | 1.20 | 2.00~4.00 | 2.00 | ||
| 16.00 | 14.00 | 0.40~2.80 | 1.50 | 2.00~5.00 | 3.00 | 10~12 | ||
| 22.00 | 18.00 | 1.80~4.70 | 1.20~2.40 | 2.50 | 6.00~7.00 | 14 | ||
| 20.00 | 5.20~5.70 | 2.60~2.80 | 7.00~8.00 | |||||
