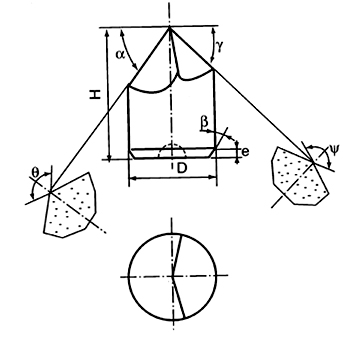

Tungsten Carbide Tips-Type M23
mm
| Type | Dimension | Note | |||||||
| D | H | α | β | γ | θ | Ψ | e | ||
| M23-92001 | 11.0 | 21.0 | 56o | 30o | 48o | 120o | 130o | 2.0 | G92081 |
| M2312 | 12.0 | 22.0 | G87037 | ||||||
| M2312A | 25.0 | 58o | 45o | 47o | G85260 | ||||
| M2312B | 12.5 | 56o | 48o | G81607 | |||||
| M23-92002 | 14.0 | 20.0 | G92241 | ||||||
| M2314 | 22.0 | G87040 | |||||||
| M2314A | 25.0 | G81608 | |||||||
