BDP Carbide (tungsten steel) Cold heading die

Name：BDP Carbide (tungsten steel) Cold heading die, stamping die, a round mold, Nail Die

Usage：For making standard bolts and nuts

Punching Dies
BDP TYPE Heading die

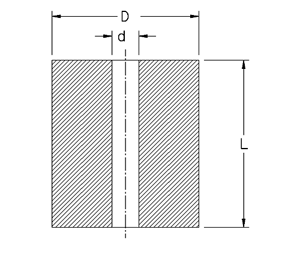

Type	Dimension（㎜）			Range of applications
Type	d	D	L	Range of applications
BDP151020	1.5	10	20.0	M2
BDP151220	1.5	12	20.0	M2
BDP151426	1.5	14.4	26.0	M2
BDP151631	1.5	16.4	31.0	M2
BDP201841	2.0	18.4	41.0	M2.5
BDP202050	2.0	20	50.0	M2.5
BDP202638	2.0	26	38.0	M2.5
BDP211630	2.1	16	30.0	M3
BDP212550	2.1	25	50.0	M3
BDP251630	2.5	16	30.0	M3
BDP282250	2.8	22	50.0	M4
BDP302530	3.0	25	30.0	M4
BDP303030	3.0	30	30.0	M4
BDP303560	3.0	35	60.0	M4
BDP304570	3.0	45	70.0	M4
BDP381420	3.8	14	20.0	M5
BDP383050	3.8	30	50.0	M5
BDP403060	4.0	30	60.0	M5
BDP404560	4.0	45	60.0	M5
BDP462260	4.6	22	60.0	M6
BDP521840	5.2	18	40.0	M6
BDP521860	5.2	18	60.0	M6
BDP542250	5.4	22	50.0	M6
BDP561620	5.6	16	20.0	M6
BDP603060	6.0	30	60.0	M8
BDP6044110	6.0	44	110.0	M8
BDP623232	6.2	32	32.0	M8
BDP642230	6.4	22	30.0	M8
BDP642540	6.4	25	40.0	M8
BDP643025	6.4	30	25.0	M8
BDP643040	6.4	30	40.0	M8
BDP652030	6.5	20	30.0	M8
BDP692240	6.9	22	40.0	M8
BDP692260	6.9	22	60.0	M8
BDP703050	7.0	30	50.0	M10
BDP704020	7.0	40	20.0	M10
BDP704865	7.0	48	65.0	M10
BDP7050100	7.0	50	100.0	M10
BDP723030	7.2	30	30.0	M10
BDP723050	7.2	30	50.0	M10
BDP753136	7.5	31	36.0	M10
BDP803060	8.0	30	60.0	M10
BDP804020	8.0	40	20.0	M10
BDP823040	8.2	30	40.0	M10
BDP823060	8.2	30	60.0	M10
BDP843560	8.4	35	60.0	M10
BDP903060	9.0	30	60.0	M12
BDP903560	9.0	35	60.0	M12
BDP923050	9.2	30	50.0	M12
BDP1003060	10.0	30	60.0	M12
BDP1003540	10.0	35	40.0	M12
BDP1003560	10.0	35	60.0	M12
BDP1004040	10.0	40	40.0	M12
BDP1005025	10.0	50	25.0	M12
BDP1005050	10.0	50	50.0	M12
BDP1144040	11.4	40	40.0	M12
BDP1183530	11.8	35	30.0	M12
BDP1184040	11.8	40	40.0	M12
BDP1202225	12.0	22	25.0	M12
BDP1203060	12.0	30	60.0	M12
BDP1204040	12.0	40	40.0	M12
BDP1204520	12.0	45	20.0	M12
BDP1253560	12.5	35	60.0	M12
BDP1304040	13.0	40	40.0	M14
BDP1383520	13.8	35	20.0	M16
BDP1383545	13.8	35	45.0	M16
BDP1384020	13.8	40	20.0	M16
BDP1384030	13.8	40	30.0	M16
BDP1384045	13.8	40	45.0	M16
BDP1384525	13.8	45	25.0	M16
BDP1404563	14.0	45	63.0	M18
BDP1453548	14.5	35	48.0	M18
BDP1504040	15.0	40	40.0	M18
BDP1504560	15.0	45	60.0	M18
BDP1544520	15.4	45	20.0	M18
BDP1544540	15.4	45	40.0	M18
BDP1604040	16.0	40	40.0	M18
BDP1644040	16.4	40	40.0	M20
BDP1644560	16.4	45	60.0	M20
BDP1704040	17.0	40	40.0	M20
BDP1704520	17.0	45	20.0	M20
BDP1704555	17.0	45	55.0	M20
BDP1704575	17.0	45	75.0	M20
BDP1705030	17.0	50	30.0	M20
BDP1724048	17.2	40	48.0	M20
BDP1754040	17.5	40	40.0	M20
BDP1764560	17.6	45	60.0	M20
BDP1805540	18.0	55	40.0	M20
BDP1824048	18.2	40	48.0	M20
BDP1904560	19.0	45	60.0	M22
BDP2005060	20.0	50	60.0	M22
BDP2104550	21.0	45	50.0	M22
BDP2105020	21.0	50	20.0	M22
BDP2105045	21.0	50	45.0	M22
BDP2185020	21.8	50	20.0	M22
BDP2205020	22.0	50.2	20.0	M24
BDP2205530	22.0	55	30.0	M24
BDP2006040	20.0	60	40.0	M24
BDP2257040	22.5	70	40.0	M24
BDP2305085	23.0	50	85.0	M25
BDP2387030	23.8	70	30.0	M25
BDP2404530	24.0	35	30.0	M25
BDP2405050	24.0	50	50.0	M27
BDP2505030	25.0	50	30.0	M27
BDP2505020	25.0	50.2	20.0	M27
BDP2505530	25.0	55	30.0	M28
BDP2606025	26.0	60.2	25.0	M30
BDP2706527	27.0	65	27.0	M30
BDP2806527	28.0	65	27.0	M32
BDP2857030	28.5	70	30.0	M34
BDP2957540	29.5	75	40.0	M34
BDP3005530	30.0	55	30.0	M34
BDP3006030	30.0	60	30.0	M34
BDP3057550	30.5	75	50.0	M34
BDP3157040	31.5	70	40.0	M36
BDP3306530	33.0	65	30.0	M38
BDP3307035	33.0	70	35.0	M38
BDP3307535	33.0	75	35.0	M38
BDP3758530	37.5	85	30.0	M42
BDP3808040	38.0	80	40.0	M42
BDP3809033	38.0	90	33.0	M42
BDP3808540	38.0	85	40.0	M42
BDP4208040	42.0	80	40.0	M46
BDP4208540	42.0	85	40.0	M50
BDP45010060	45.0	100	60.0	M50
BDP45010080	45.0	100	80.0	M50
BDP4758530	47.5	85	30.0	M52
BDP5009550	50.0	95	50.0	M54
BDP5209040	52.0	90	40.0	M56
BDP60010040	60.0	100	40.0	M64
BDP61510020	61.5	100	20.0	M66
BDP70012040	70.0	120	40.0	M76
BDP80013040	80.0	130	40.0	M84
BDP85014040	85.0	140	40.0	M90
